Vacuum Chuck - Robust Tools

Vacuum Chuck - Robust Tools

Drop ship item - please call Chad to order: 480-590-2003

Vacuum Chuck Info:

  • Robust offers two kits to get you set up for vacuum chucking. Components are also available individually.
  • One kit is complete except for a rotary vacuum adapter.
  • If you have a Robust lathe, or any Powermatic 3520 A, B or C, or any 2020, get the kit without built in rotary adapters, and buy the “Vacuum Adapter for Robust AB & S16 and PM 3520 & 2020” rotary adapter separately – you’ll save a few bucks this way.
  • Please note, this adapter may not fit some of the early American made 3520 lathes.
  • If you have a different lathe, you’ll want the kit with individual rotary adapters built into the chucks.
  • Buying kits saves you about 5% over purchasing the items individually.

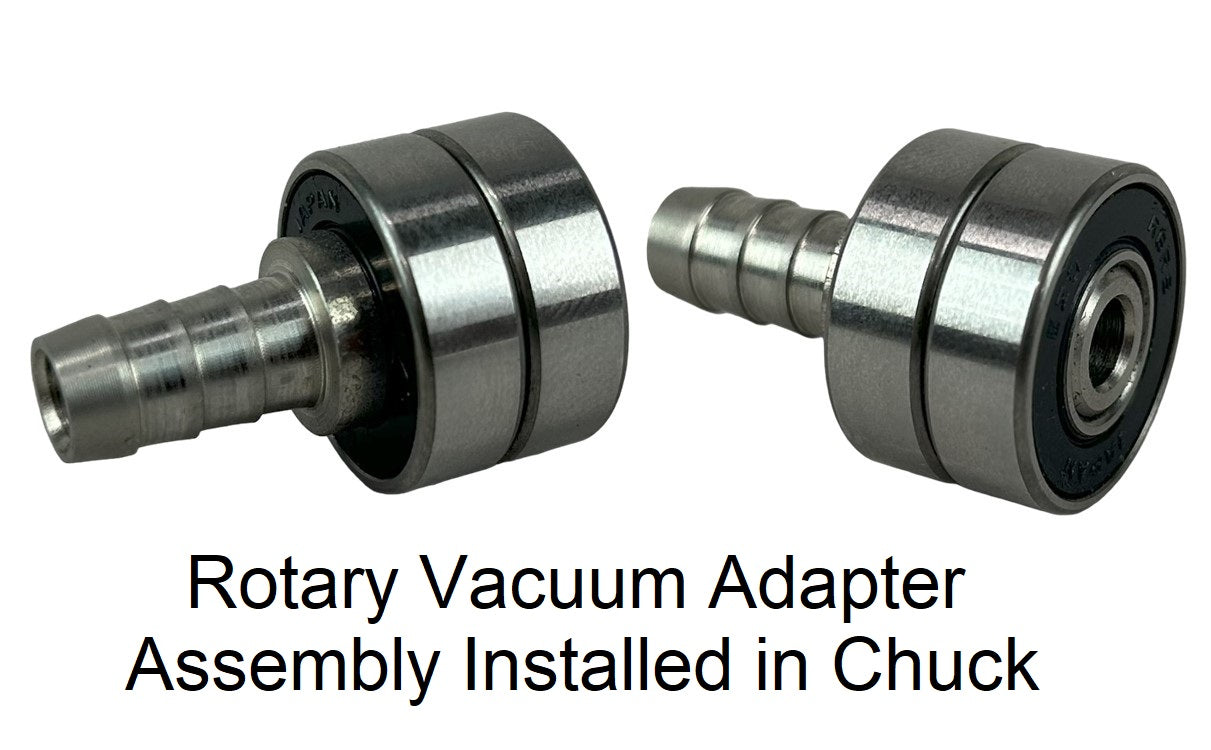

  • Lathes with an 1-1/4 x 8TPI spindle, and includes everything you need to get going with vacuum chucking, including three chucks with built in adapters. Also, there needs to be at least a .4″ or 10mm through hole in the spindle. Most lathes will have this. This kit includes assembly instructions, an imported 4CFM pump, the complete hardware kit and three chucks made by Robust from solid 6061 aluminum, fitted with built in adapters, sized: 3.25″, 4.5″ and 6″. Buying this kit saves you about 5% over purchasing the items individually. The built in rotary adapters consist of two precision sealed bearings and a stainless steel hose barb that we also machine. You will attach a piece of tubing (included) to the barb that will run through the spindle hole of your lathe. The tube from your vacuum pump will then attach to this tubing.

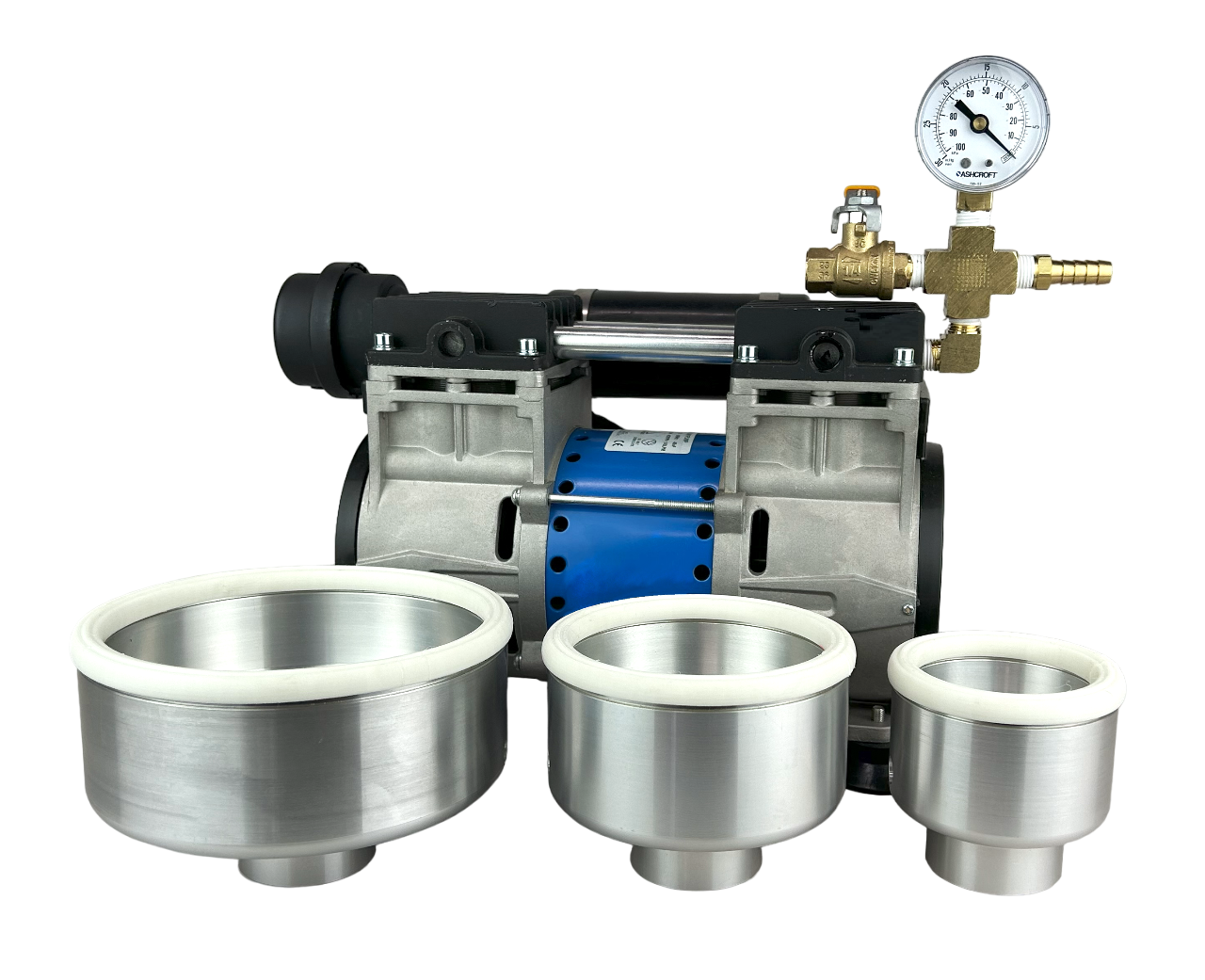

Kits Include:

  • Assembly instructions
  • A 4CFM two-stage oil-less pump
  • The complete hardware kit
  • Three chucks made by Robust from solid 6061 aluminum

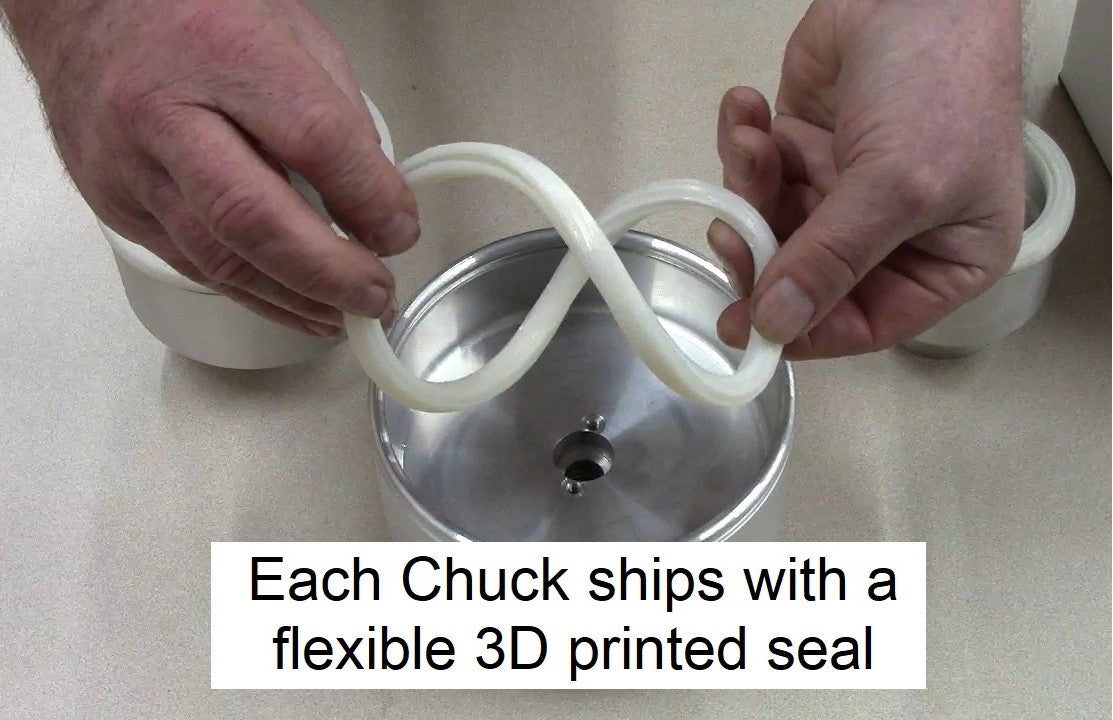

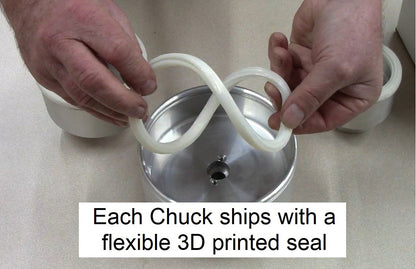

  • Included chucks are sized: 3.25″, 4.5″ and 6″, and each comes with a 3D printed seal.
  • Chucks are threaded 1-1/4” x 8TPI.
  • The hardware portion of the kits require minor assembly.
  • The pumps are imported and warranted for one year.
  • Adapters only included in set indicating with adapters

Individual Chuck & Adapter Options:

  • Vacuum Adapter for Robust AB & S16 and PM 3520 & 2020: $109
  • 4 CFM Oilless Vacuum Pump: $349
  • Vacuum Hardware Kit & Tubing: $89
  • 3.25" Vac Chuck & Seal: $99
  • 4.5" Vac Chuck & Seal: $139
  • 6" Vac Chuck & Seal: $189
  • 3.25" Vac Chuck, Seal & Built in Adapter: $149
  • 4.5" Vac Chuck, Seal & Built in Adapter: $189
  • 6" Vac Chuck, Seal & Built in Adapter: $239
  • 3.25" Replacement Seal: $12
  • 4.5" Replacement Seal: $19
  • 6" Replacement Seal: $24
  • Universal Hub with built in Adapter: $139
  • Vacuum Adapter for Robust Scout: $109
  • Universal Hub - Make your own Chuck: $89
Set Option
$969.00 USD
$969.00 USD
Sale Sold Out

Woodturners enjoy achieving a flawless inside cut on turned pieces. Tru-Arc lets you do this to perfection on shallow bowls and platters.

Instructions

Instructions Page



View full details
