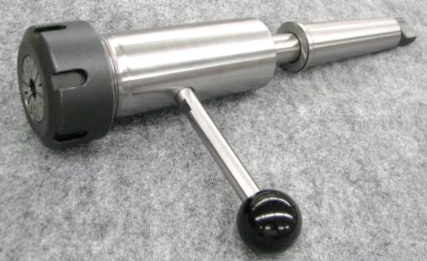

Sliding Tap & Die Holder - ER32 Collet System

Sliding Tap & Die Holder - ER32 Collet System

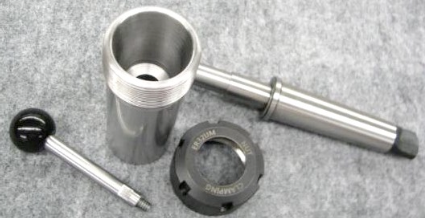

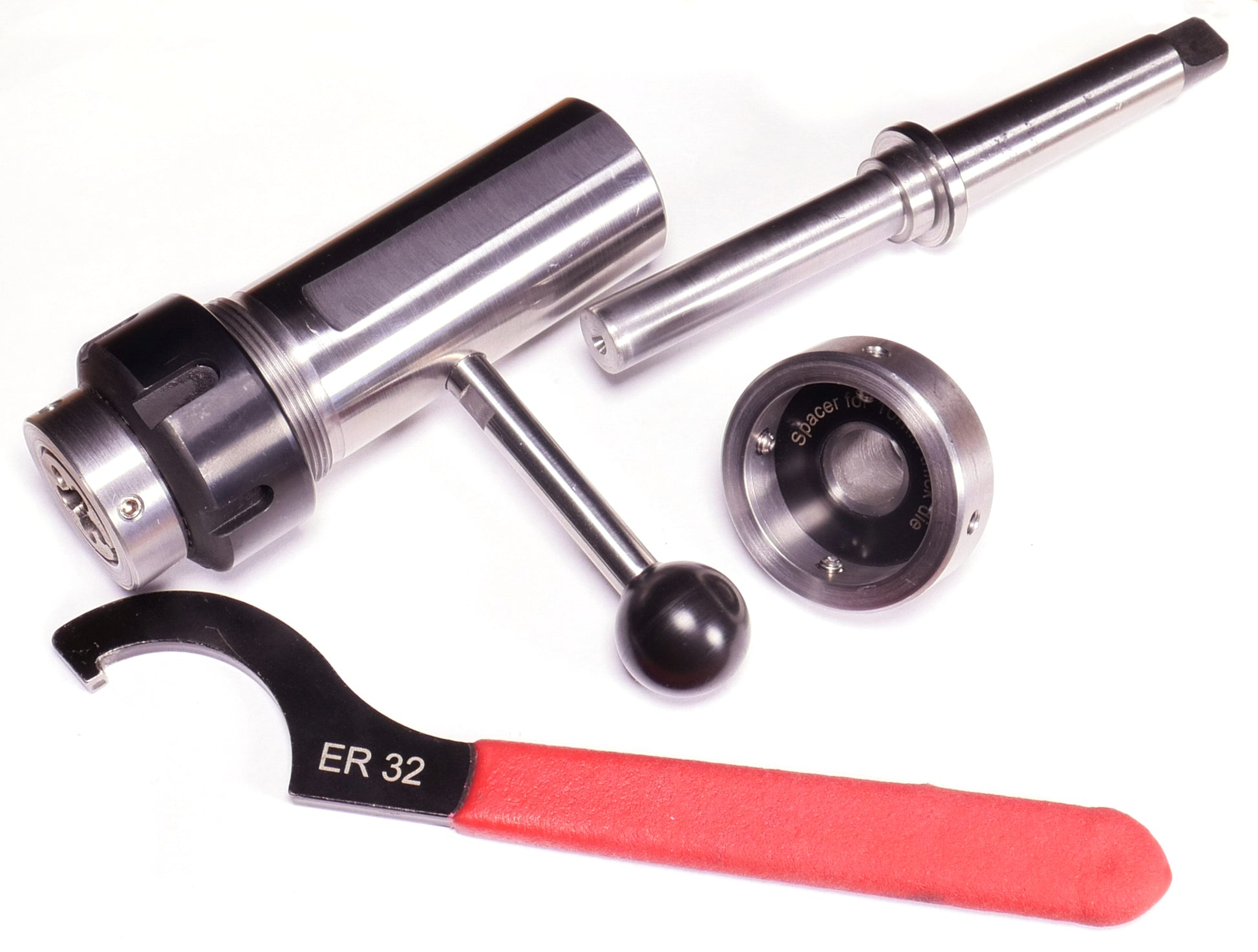

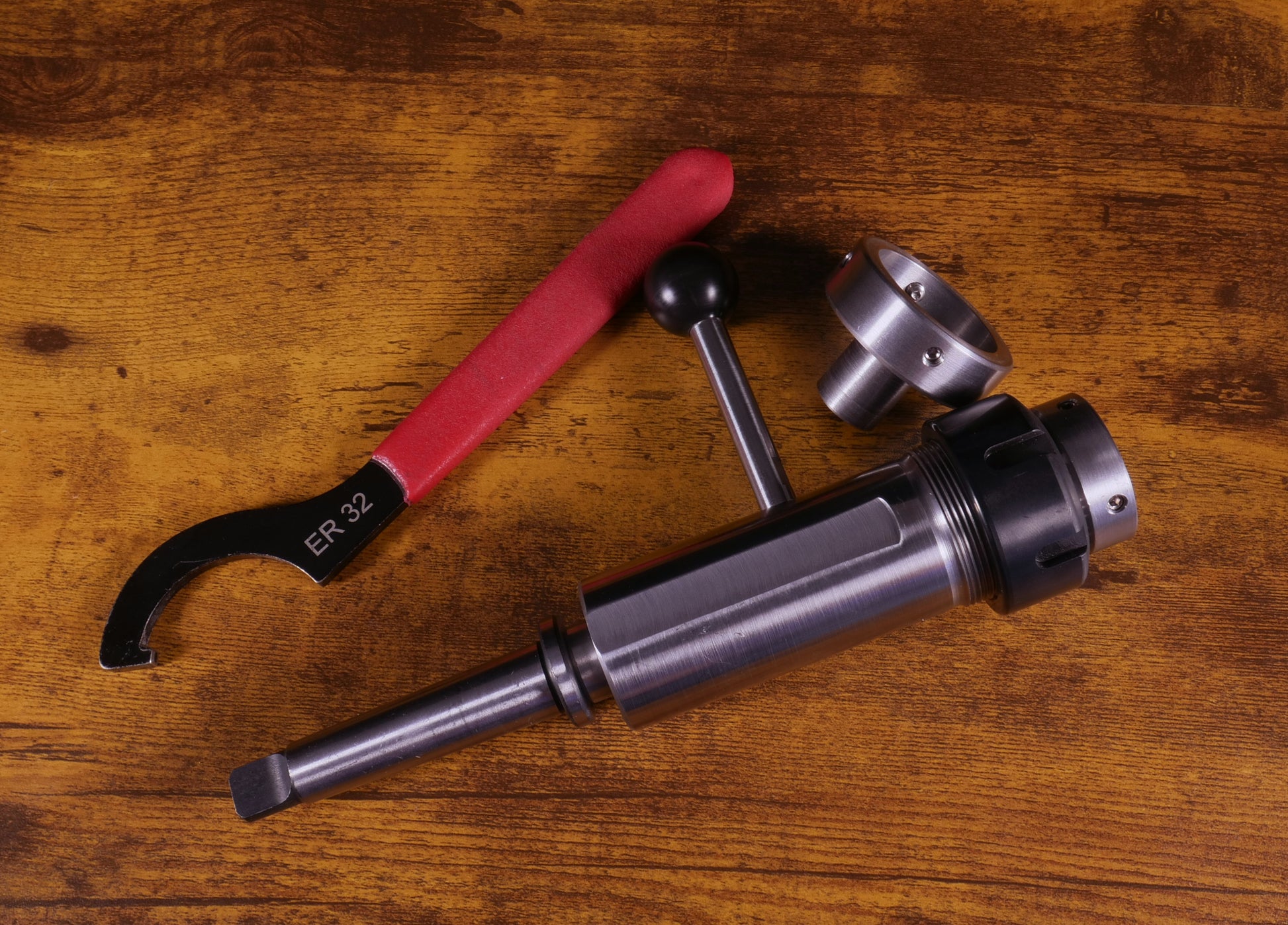

Included in this set:

  • Sliding Tap & Die Holder
  • 1" Die Holder
  • 1.5" Die Holder
  • Wrench
  • ER32 Collet size 3/4"

Tap & Die Collet Compatibility:

  • Die Holder: uses 3/4" collet
  • Turners Kitless Mandrels: uses 1/2" & 5/8"
  • Jowo #6 Tap: uses 7-8mm collet
  • M8.5x.75 Tap: uses 5-6mm collet
  • M10x1 Tap: uses 7-8mm collet
  • M11x.8 Tap: uses 7-8mm collet
  • M12x.8 Tap: uses 3/8" collet
  • M13x.8 Tap: uses 10-11mm collet
  • M14x.8 Tap: uses 10-11mm collet
  • M15x.8 Tap: uses 11-12mm or 1/2" collet

Sliding Tap & Die Holder Info:

  • Morse Taper 2 - MT2
  • Collet size ER32

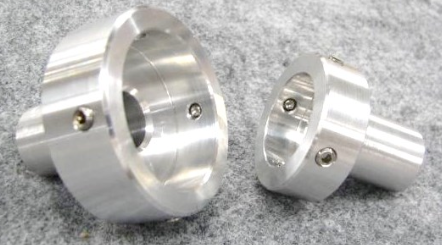

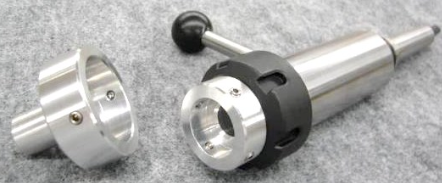

  • Die Holders come in 1.5" & 1", They have 19mm stem ad will fit a 19mm or 3/4" collet
  • Made in USA
$159.99 USD
$159.99 USD
Sale Sold Out

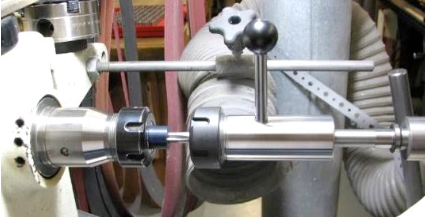

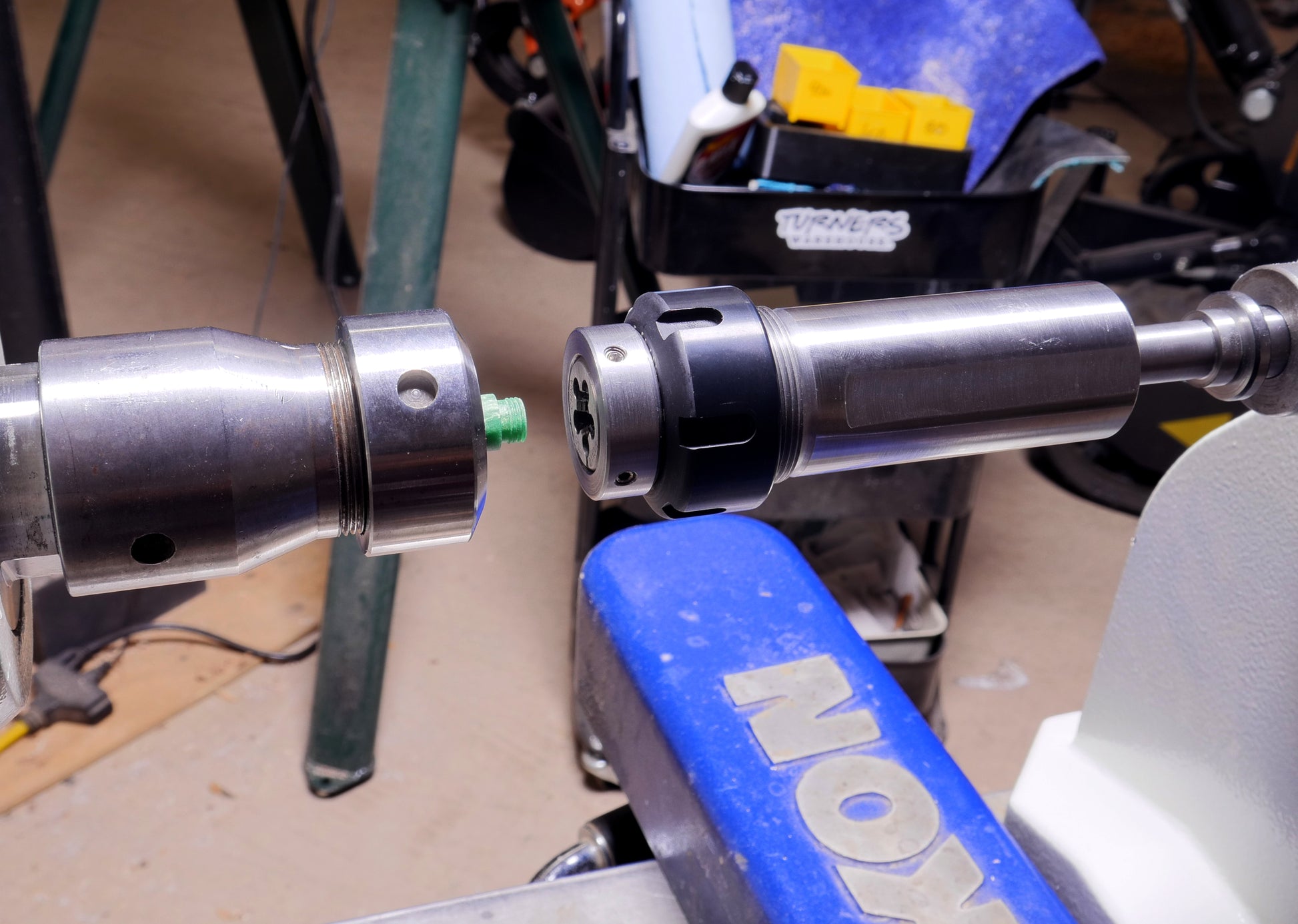

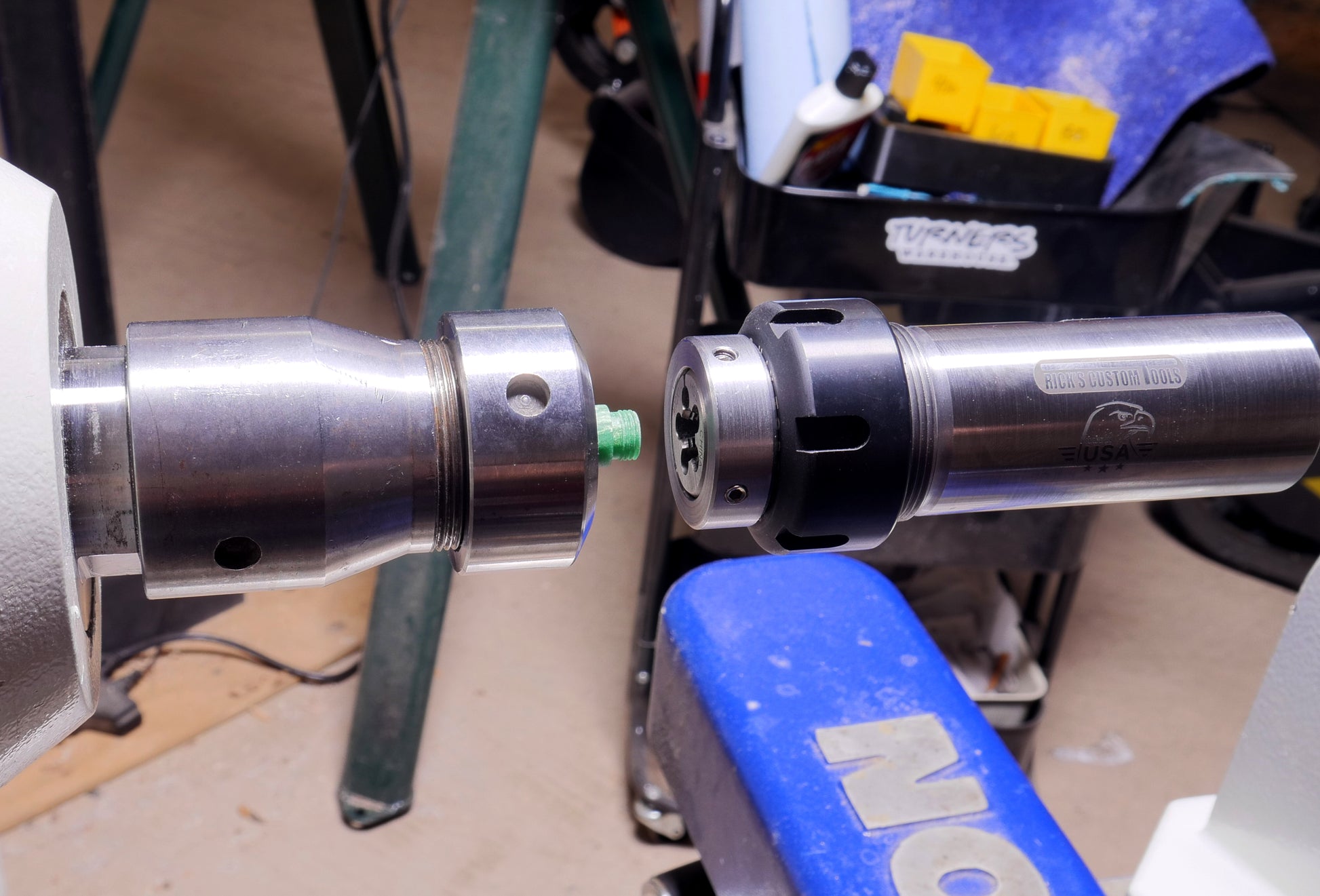

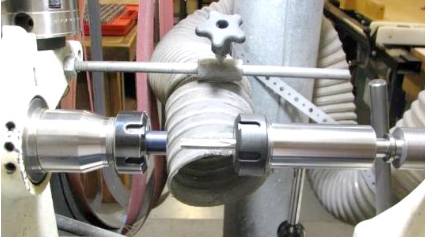

No more dragging the tailstock when you power tap, just grab the handle and push the tap into the blank. When you reach the desired depth, stop the lathe and finish the last few threads by hand. If you have a shallow hole, just use the handle and tap by hand, this holder has tremendous "feel" to it and makes hand tapping a real joy to do.







Instructions

Instructions Page
