Laguna Flux - Dust Collectors

Laguna Flux - Dust Collectors

X|Flux 5

  • Horsepower: 5HP
  • Electrical: 220V / 60Hz / 1PH / 3450 RPM
  • Running Amp: (8” inlet) 21.5 A at 220V
  • Air Volume: 1823CFM (cubic feet per minute)
  • Max Static Pressure: 12 Inches of water
  • Fan Size: 14.5"
  • Inlet: 8"
  • Collection Capacity: 39 gallon Octagon drum x 1 set
  • Dimensions: 36” x 38” x 91”
  • Cartridge Filter: HEPA 19.7” x 19.7” (50 x 50cm) x 1pc ; (0.3-0.4 micron @ 99.7% efficiency)
  • X|Flux 5 boasts a powerful 5hp motor and impressive 1823 CFM. Auto-cleaning of the HEPA filter is accomplished by double-paddles that sweep the filter every 3 minutes of system use in a clockwise and counterclockwise action. Remote and LED drum light are standard. The X|Flux 5 is a full-size stationary, single-stage dust collection unit with convenient 39 gallon drum on locking castors.
  • **Drop Ship is based on Laguna Stock - please contact us for availability

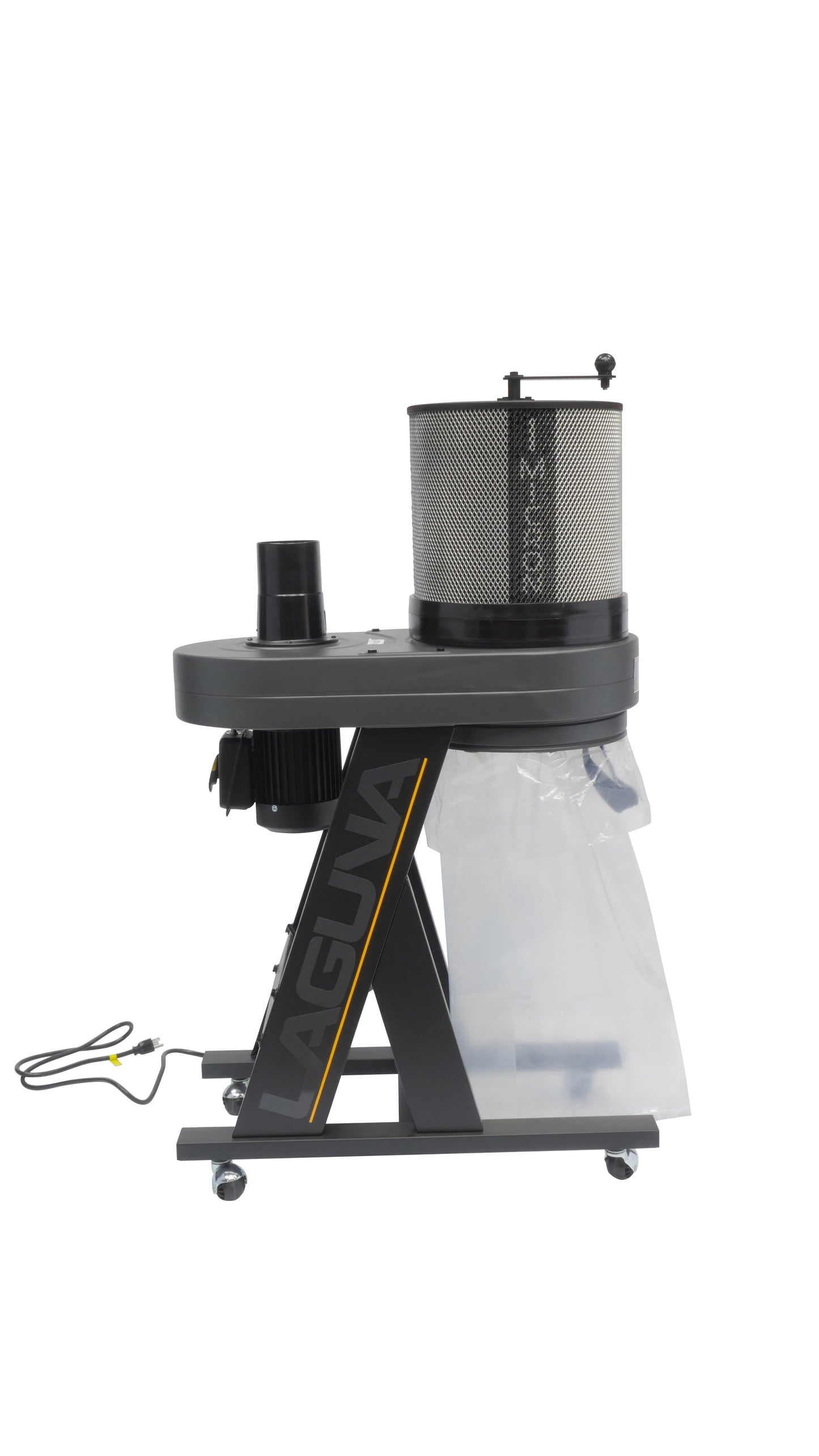

B|Flux

  • Horsepower: 1HP
  • Electrical: 110V / 60Hz / 1PH / 3450 RPM
  • Air Volume: 550CFM
  • Max Static Pressure: 4.86" of water
  • Fan Size: 9"
  • Inlet: 4 x 1 port
  • Dimensions: 736x376x1280mm
  • The most beautiful single stage dust collector to hit the market in years. Sleek design and power to match. No more fumbling with a steel band to mount your lower bag, the b|flux comes with a patented Snap-Band that makes changing the bag a breeze. Unlike most 1HP units the b|flux feels solid & has a low dB rating. The horizontal dust chute provides optimum airflow & can swivel 180° to make the 4 outlet face downwards.
  • The b|flux:1 comes standard with a 1 micron canister providing filtration of 99.97% of particles between 0.2 ~ 2 microns & features 17.2 square feet of polyester spun bond pleated filter to ensure maximum airflow. Hand crank cleaning prevents clogging of the filter.
  • **Drop Ship is based on Laguna Stock - please contact us for availability

C|Flux

  • Horsepower: 1.5HP
  • Electrical: 110V/220V / 60Hz / 1PH / 3450 RPM
  • Running AMP: (with 6” inlet) 18.8A at 110V; 9.4A at 220V
  • Air Volume: 900CFM (cubic feet per minute)
  • Max. static pressure: 10.1 Inches of water
  • Fan size: 13.5”
  • Inlet: One 6” or two 4” ports
  • Collection capacity: 25 gallon octagon drum
  • Dimensions: 42” x 25” x 68”
  • Cartridge Filter: 1 Micron, 15.74” x 19.68” (40 x 50cm) x 1pc
  • For the popular C|Flux cyclone dust collectors, we've kept the user-friendly aspects of the previous generation while adding smart new features to improve the user experience. Among the upgrades is a dual-paddle filter cleaning design, and a max level indicator to increase filter longevity. The iconic octagonal drum grows to an impressive 46-gallon capacity on the C|Flux 2 and 3 models, and the newly redesigned 3-piece drum construction requires far fewer joints and fasteners cutting assembly time, while the added locking casters provide additional stability.
  • **Drop Ship is based on Laguna Stock - please contact us for availability

P|Flux

  • Horsepower: 1.5HP
  • Electrical: 110V/220V / 60Hz / 1PH / 3450 RPM
  • Running Amp: (with 6” inlet) 18.8A at 110V; 9.4A at 220V
  • Air Volume: 900CFM (cubic feet per minute)
  • Max Static Pressure: 10.1Inches of water
  • Fan Size: 13.5"
  • Inlet: One 6” or two 4” ports
  • Collection capacity: 25 gallon Octagon drum
  • Dimensions:42” x 25” x 68”
  • Cartridge Filter: HEPA 15.74” x 19.68” (40 x 50cm) x 1pc
  • The P|Flux series gets a host of exciting new upgrades including an auto-cleaning feature standard on all models in this line. The auto-clean conveniently activates every 10 minutes, or you can simply activate from the sleek redesigned remote. Overfilling the drum is a thing of the past, thanks to the super-sized 46 gallon octagonal drum (P|Flux 2 and 3), and a bright LED light illuminating the drum on all P|Flux models. Plus, LED and audio warning lets you know when the drum is full – features that are now standard in this line.
  • **Drop Ship is based on Laguna Stock - please contact us for availability
Machine Style
Regular price $4,499.99 USD
Regular price Sale price $4,499.99 USD
Sale Sold Out

Reduce dust and improve air quality with Laguna Flux Dust Collectors. Choose from a variety of options to fit your specific needs. Expertly designed for efficient and effective dust extraction.

**Drop Ship is based on Laguna Stock - please contact us for availability

X|Flux: 5 Manual

P|Flux: 1 Manual

P|Flux: 2 & 3 Manual

C|Flux: 1 Manual

C|Flux: 2 & 3 Manual

B|Flux Manual
